Heated Enclosures for Chlorine Analyzers

Yes. The ThermaGuard Retrofittable Enclosure is designed for installation around existing instruments without taking them offline. Its modular construction allows the enclosure to be installed all at once or in stages, supporting retrofit work where removing operational instrumentation would create disruption or delay.

When equipped with the ThermaGuard Heated Liner, the listed systems can maintain above 75°F/23.9°C in environments reaching -60°F/-51.1°C. Actual performance depends on the selected configuration, insulation, heater components, installation, and site conditions.

The ThermaGuard Retrofittable Enclosure is listed with IP66 protection, while the ThermaGuard Expandable Enclosures provide IP65 protection. These ratings address dust and water ingress protection. The appropriate enclosure should be selected according to the analyzer configuration and environmental exposure.

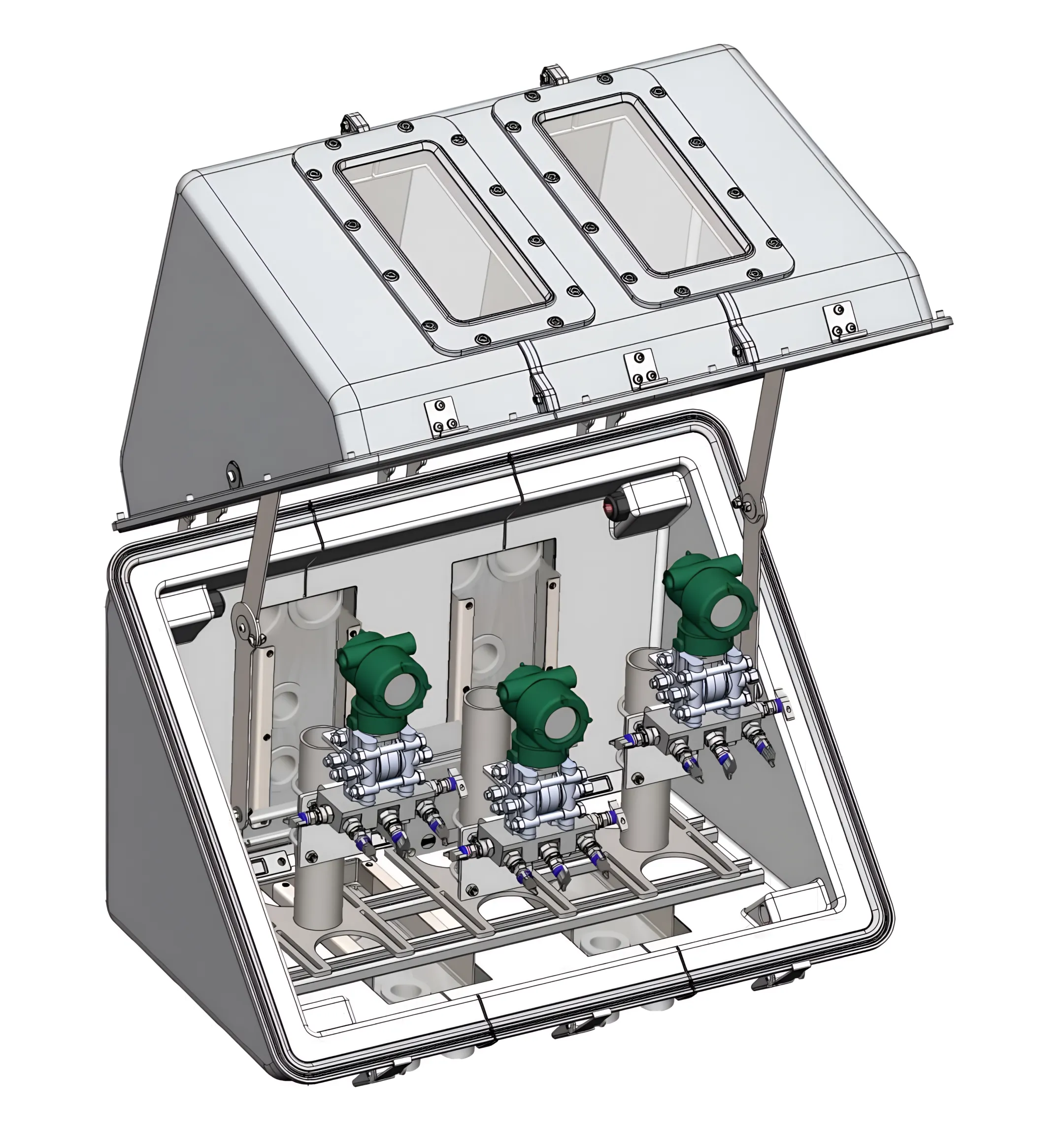

Yes. The ThermaGuard Expandable Enclosures are designed for single, double, or triple instrument configurations. Replaceable back plates can be field-punched for power wiring, control wiring, and process tubes, allowing entry-port arrangements to be adapted to the installation.

The enclosures use reinforced plastic construction, including ASA plastic with glass reinforcement and glass-reinforced polyester options. Stainless steel hinges, latches, hardware, and lid supports are used, with EPDM or Neoprene gasket options depending on the enclosure design.

Technical support and installation services are available. Support can include field installation for process tubing, electrical connections, block heaters, calibration, testing, and entry-port configuration. Individual replacement parts are available for the retrofittable design, helping simplify maintenance.
