Introduction
Thermal enclosure management protects instruments and electrical equipment from two opposite threats at once: excessive heat and cold-related damage. Many facilities struggle with overheating, condensation, freezing, corrosion, inaccurate readings, and unplanned downtime.
These problems often appear because thermal control gets treated as an afterthought rather than a design requirement.
A transmitter that reads wrong because its enclosure baked in the sun all summer is just as much a problem as one that froze solid in January. Both failures trace back to the same root cause: nobody planned for the full thermal picture before the equipment was installed.
This article walks through a practical approach. We'll cover how to assess your equipment and environment, design airflow and heat protection into the enclosure, select the right heating or cooling method, confirm ingress-protection ratings, and validate performance once the system is commissioned.
Key Takeaways
- Build thermal management into the enclosure design phase, not as a post-installation fix
- Base system selection on heat load, ambient conditions, solar exposure, temperature range, and IP rating
- Cold-weather protection often needs a combination of heater, thermostat, insulation, and heated liner
- Retrofits should preserve instrument access, hazardous-area compliance, and uptime
- A sealed enclosure is not automatically condensation-free; temperature swings still create moisture problems
Why Thermal Enclosure Management Matters
An industrial enclosure has one job: isolate instruments, wiring, tubing, and electrical components from dust, water, chemicals, weather, mechanical damage, and hazardous surroundings, while keeping the internal environment within an acceptable range. That second half of the job, the suitable operating environment, is where a lot of installations fall short.
The Cost of Running Hot
Excess internal heat shortens component life, skews instrument readings, triggers nuisance trips, and destabilizes control systems. Rittal's July 2024 white paper gives a useful benchmark for semiconductor components: a 10°C rise above the maximum permissible component temperature can cut service life in half, according to Rittal's engineering guidance.
That figure is a manufacturer rule of thumb for semiconductors, not a universal law for every enclosed part. It still shows how quickly heat compounds against reliability.
Cold Weather Brings Its Own Failure Modes
Freezing conditions create a different set of problems:
- Frozen impulse lines and blocked process tubing
- Brittle seals and gaskets after prolonged cold exposure
- Internal condensation, even inside a sealed box
- Corrosion and electrical shorts from trapped moisture
- Freeze-thaw cycling that stresses fittings and connections
A tightly sealed enclosure is not automatically condensation-free. Condensation forms when moist air contacts a surface below its dew point. Day-to-night swings, or a cold start-up against a warm process line, can create internal moisture no matter how well the box is sealed.
Process Instrumentation Needs a Wider Lens
Electronics-only thermal management usually focuses on a single component. Process-industry enclosures are different. The protected system might include a transmitter, a manifold, process connections, tubing bundles, wiring, and accessories, each with its own temperature limits and failure threshold. Treating the enclosure as a single thermal zone, without accounting for every component inside it, is how mismatched protection happens.
Poor thermal design discovered after installation rarely gets a cheap fix. It usually means additional wiring runs, a process outage, enclosure modifications, or replacing equipment that failed prematurely. That's a strong argument for getting it right at the design stage instead of the repair stage.
Best Practices for Thermal Enclosure Design

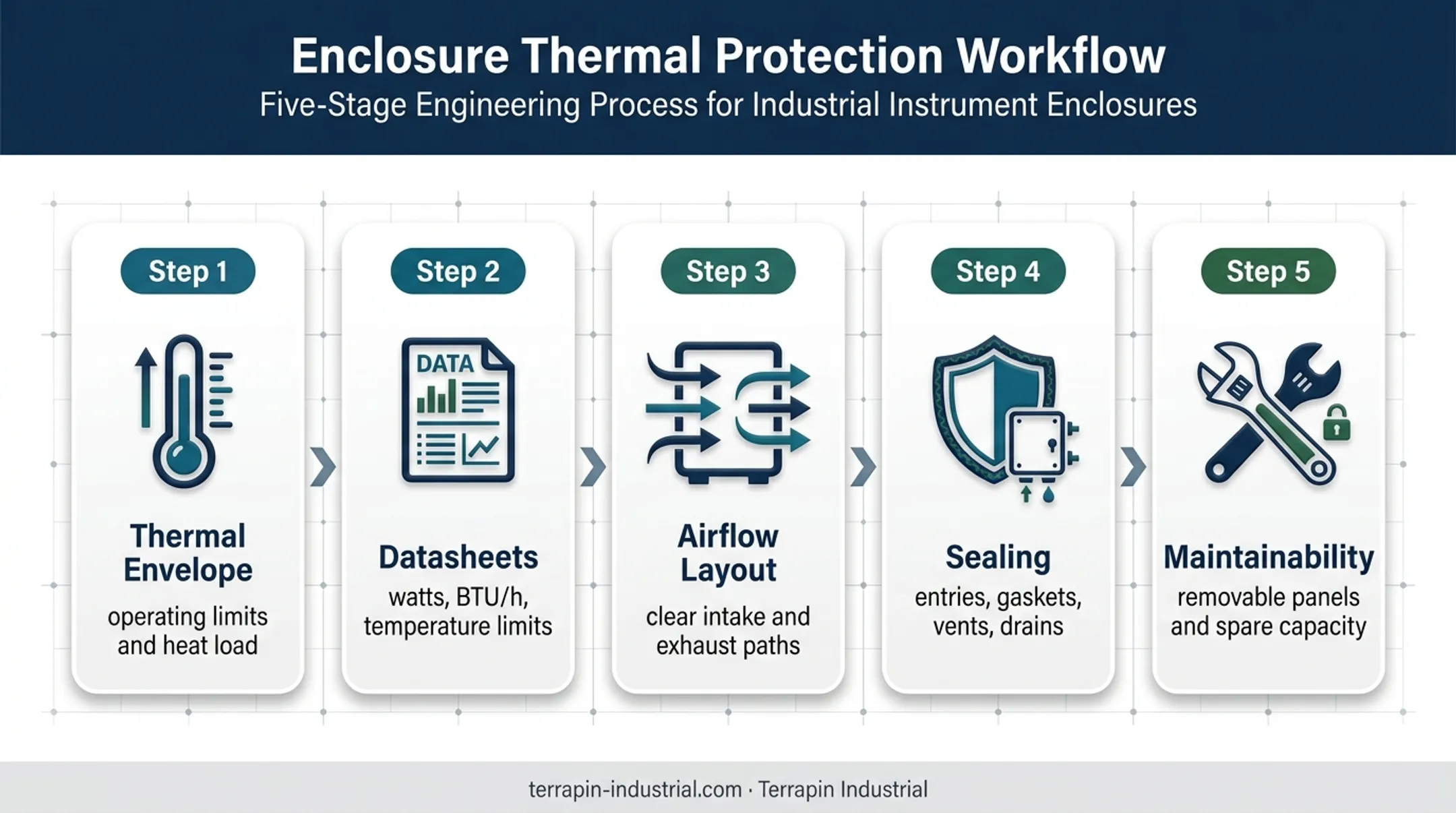

Good thermal design starts before you pick an enclosure off a catalog page. Define the full thermal envelope first:
- Equipment operating and storage temperature limits
- Internal heat dissipation from every installed component
- Minimum and maximum ambient temperatures at the site
- Solar exposure, wind, humidity, and corrosive conditions
- Altitude, if relevant to the application
- Future equipment additions that will add heat load
Read the Datasheets Before You Design Around Them
Every piece of equipment going into the enclosure has a datasheet with dimensions, clearances, heat output, airflow requirements, temperature limits, and installation orientation. Heat values show up in watts, BTU/h, or other manufacturer-specific units. Convert everything to one consistent unit before running your calculations. Mixing units is a common source of undersized (or oversized) thermal systems.
Layout Prevents Thermal Short Circuits
A poorly planned interior can undo good component selection. Keep these principles in mind:
- Don't aim exhaust air at sensitive equipment: hot exhaust from one device shouldn't become another device's intake air
- Preserve clear airflow paths above and below equipment for intake, exhaust, and convection
- Route cables and tubing away from airflow and heater coverage so they don't create dead zones or block heat distribution
Sealing Details Matter as Much as the Heater
Cable entries, process-tube entries, gaskets, doors, vents, drains, and unused openings all need to be addressed alongside the thermal system, not after it. NEMA's enclosure FAQ notes that an installed assembly's overall Type rating is only as good as its weakest-rated component, according to NEMA's enclosure guidance. A field-drilled hole with the wrong fitting can undermine an otherwise well-rated enclosure.
Finally, build in room to maintain the system later. Removable panels, replaceable heaters or liners, and spare capacity all make future service easier. This is where modular construction earns its keep: a technician can access or swap a component without disturbing the rest of the enclosure or pulling the instrument offline.
How to Select Heating, Cooling, and Insulation
Before picking a heater or cooling unit, establish the load and the control objective.
For cooling: Total the heat generated by every installed component, then add external heat gain from direct sunlight and nearby hot equipment.
For heating: Identify the minimum acceptable internal temperature, then calculate heat loss through the enclosure surface, penetrations, wind exposure, and ambient conditions.
Use manufacturer data and engineering calculations for this, not rules of thumb pulled from memory. Enclosure geometry, mounting configuration, and installed losses all affect the real-world number.
Matching the Method to the Load
| Approach | Best suited for |
|---|---|
| Passive (shading, insulation, natural convection) | Moderate loads, moderate ambient swings |
| Active cooling (filtered fans, heat exchangers, A/C, thermoelectric) | High heat load or high ambient temperature |
| Active heating (heaters, heated liners, thermostats) | Cold climates or condensation risk |
Choosing an Enclosure Heater
Confirm these details against the product documentation, not an assumption:
- Wattage and voltage match the load calculation
- Control method, including thermostat or hygrostat use
- Heater placement and clearance from instruments and combustible materials
- Compatibility with the enclosure's hazardous-area classification
On that last point, be careful not to confuse a hazardous-location temperature class with an operating setpoint. UL's hazardous-locations reference lists T6 at a maximum surface temperature of 85°C, according to UL's hazardous locations guide — that's a ceiling the heater's surface must never exceed, not a target internal temperature to design around.
IP/NEMA Rating and Thermal Control Are a Package Deal
Open ventilation simplifies cooling but lets in dust and moisture. A sealed enclosure preserves its ingress rating but may need closed-loop cooling or an internal heater to manage temperature and condensation. Evaluate both requirements together, because optimizing one in isolation tends to compromise the other.
Where Modular, Retrofittable Design Fits In

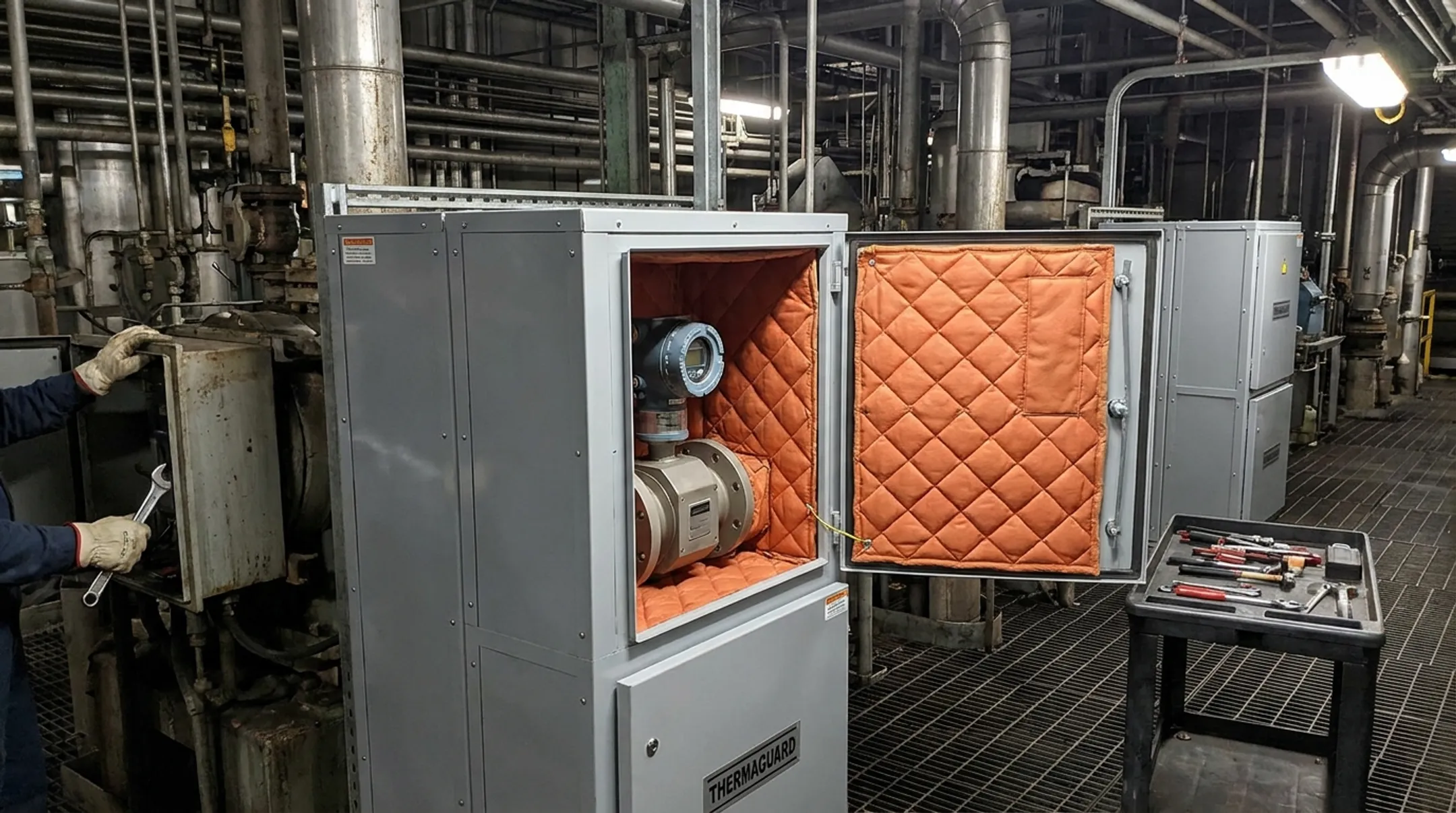

This is where Terrapin Industrial's ThermaGuard product line becomes relevant for one specific scenario: winterizing an existing instrument or replacing its enclosure without taking the instrument offline. Traditional rigid enclosures often require the instrument to be de-energized and the enclosure rebuilt from scratch, a process that can run upward of 20 field man-hours for a single transmitter.
ThermaGuard's modular approach allows the enclosure to be built around the instrument in stages, instead of forcing a full shutdown. Depending on the application, two configurations apply:
- IP66 retrofittable enclosure — designed for replacing an existing enclosure in place
- IP65 expandable enclosure — designed for single, double, or triple instrument configurations, with Class 1 Division 2 thermoelectric cooling available as a bolt-on option
The patent-pending ThermaGuard Heated Enclosure Liner combines insulation and heater cable in one assembly, maintaining above 75°F (23.9°C) in ambient conditions as cold as -60°F (-51.1°C). Heater cable options range from 3 to 20 watts per foot, producing 108 to 720 watts of output, and the liner carries a T6 hazardous-area rating, compared to the T3 (392°F) limit typical of traditional finned and block heaters. Whether either configuration fits a given job still depends on the enclosure's existing rating and the site's hazardous-area classification, which should be confirmed against the specific application before specifying.
Installation, Commissioning, and Maintenance
A well-designed thermal system still needs a careful installation and a real commissioning process. Skipping either one is how good engineering turns into a field problem six months later.
Installation Checklist
- Heater or cooling unit placed per manufacturer clearance requirements
- Airflow paths unobstructed by cables, tubing, or conduit
- Cable and tubing routing secured and clear of heater coverage
- Penetrations sealed and gaskets intact
- Grounding and bonding completed
- Thermostat located where it reads representative temperature
- Installation matches the approved hazardous-area design
Commissioning: Verify, Don't Assume
Commissioning should confirm the system actually performs as designed, not just that it powers on. At minimum:
- Inspect the completed enclosure for physical and sealing integrity
- Test heater or cooling controls through a full cycle
- Measure representative internal temperature and humidity under expected operating conditions
- Check for condensation or hot spots at multiple points, not just near the sensor
- Document baseline readings for future comparison

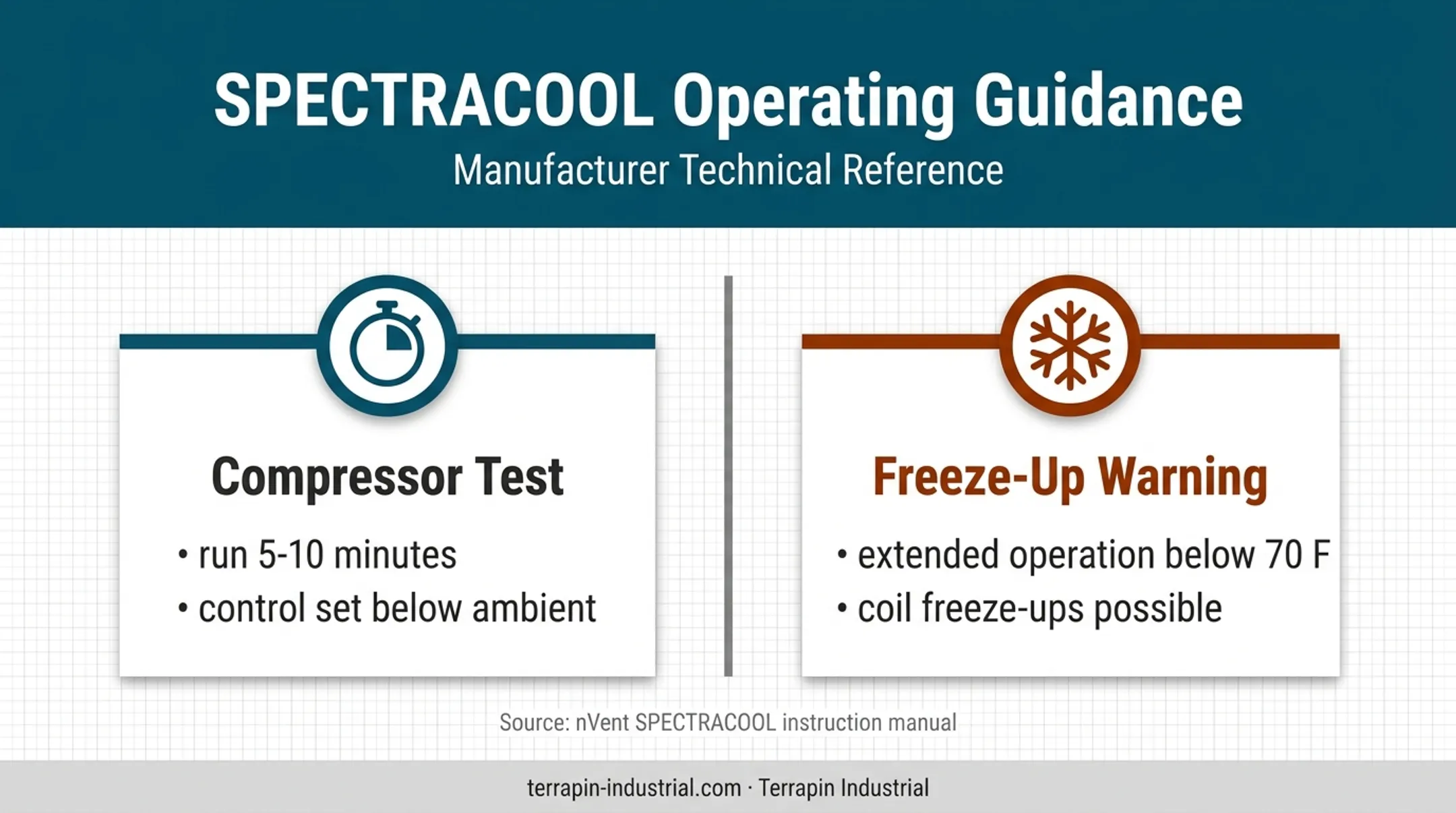

Manufacturer procedures matter here. nVent's SPECTRACOOL instruction manual, for example, calls for running the compressor for 5-10 minutes with the control set below ambient before relying on the unit, and warns that extended operation below 70°F can cause coil freeze-ups. That's a model-specific instruction, but it illustrates why you follow the specific manual rather than a generic checklist.
Ongoing Maintenance
A sound maintenance program checks:
- Seals and penetrations for degradation
- Filters or heat-transfer surfaces for buildup
- Heater and control wiring condition
- Thermostat operation and calibration
- Signs of corrosion or trapped moisture
- Alarm history and temperature trend data
Set inspection intervals based on the equipment manufacturer's recommendations or your site's procedures rather than a generic schedule. Environments vary too much for a one-size-fits-all interval to hold up everywhere.
Frequently Asked Questions
What is an enclosure used for?
An enclosure protects instruments, electrical equipment, wiring, and process connections from environmental, mechanical, and operational hazards. It also helps maintain a suitable internal temperature and humidity range for the equipment inside.
What are the types of enclosures?
Common industrial categories include general-purpose, weather-resistant, hazardous-area, expandable, and retrofittable enclosures. The right choice depends on the environment, the equipment being protected, and the applicable rating system, whether NEMA, IP, or both.
What is a Type 4 enclosure?
A NEMA Type 4 enclosure protects against windblown dust, rain, splashing water, and hose-directed water, and resists damage from external ice formation. Always verify the current definition against the applicable NEMA standard, since Type 4 is not interchangeable with an IP rating.
What is an enclosure heater?
An enclosure heater maintains a minimum internal temperature to help prevent condensation and freezing. Heater sizing, controls, placement, and hazardous-area approval all need to match the specific application rather than a generic wattage assumption.
