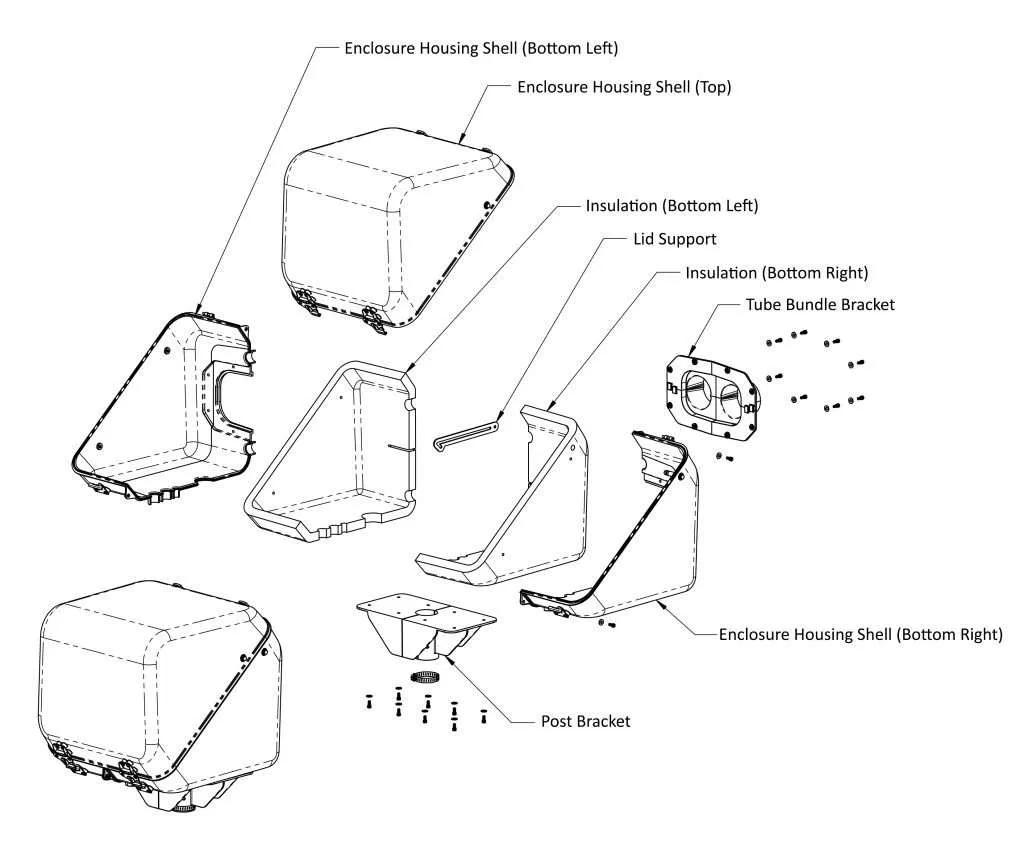

Terrapin’s patented ThermaGuard modular design significantly simplifies the installations of rigid enclosures with a modular installation process. Enclosures can be installed as a pre-assembled enclosure or piecemeal around an existing instrument without taking the instrument offline. The alignment manifold provides pre-set holes for power wiring, control wiring, and process tubes, for a complete installation in the field inclusive of process tubing, electrical, block heaters, calibration and testing without the need of offsite integration and schedule breaks.
ThermaGuard Advantages

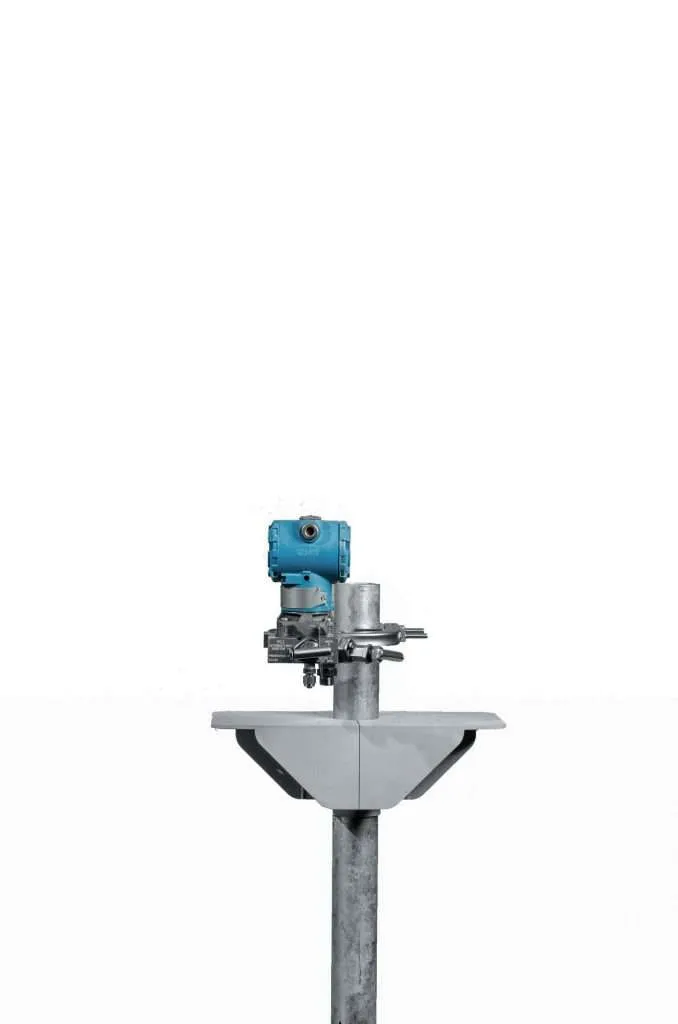

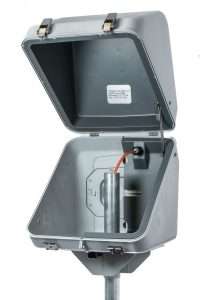

- Allows instruments & bundle to be installed ahead of the enclosure.
- Can be installed before or after the instrument & tubing bundle.
- Parts can be individually replaced.

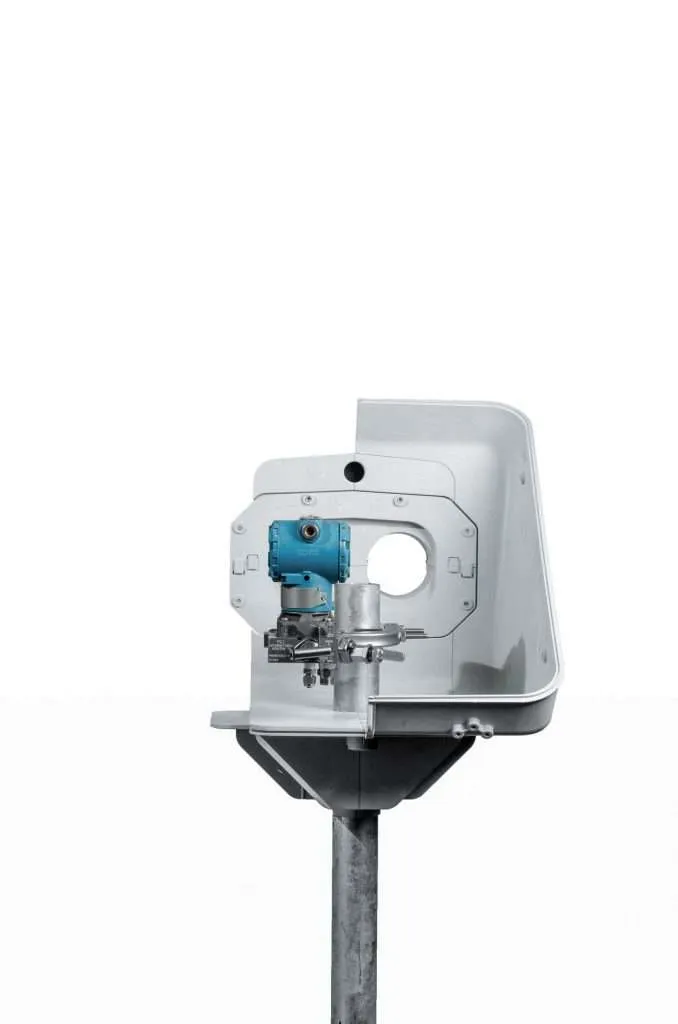

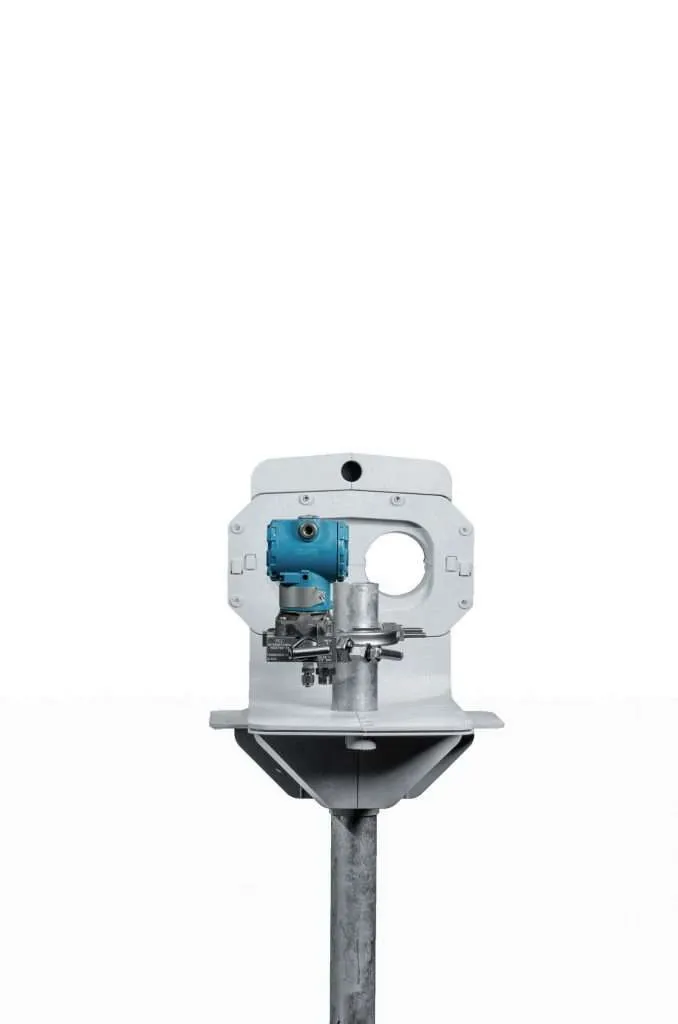

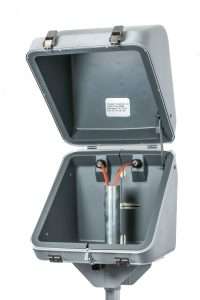

- Can be installed all at once or in stages.
- Pre-Engineered Holes for conduit &tubing bundles simplify installation.

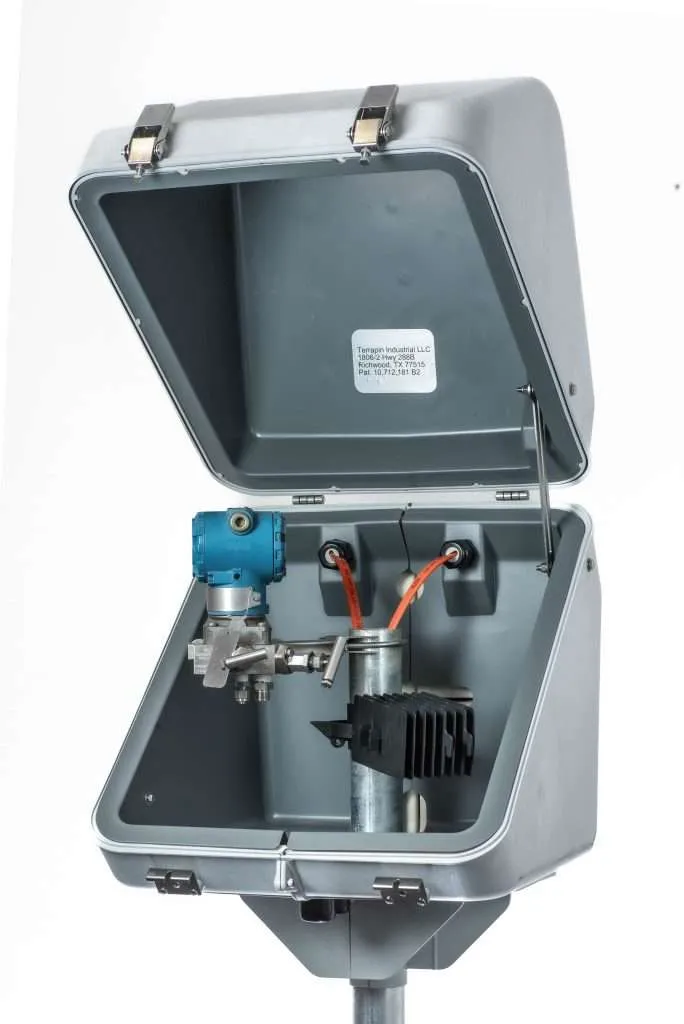

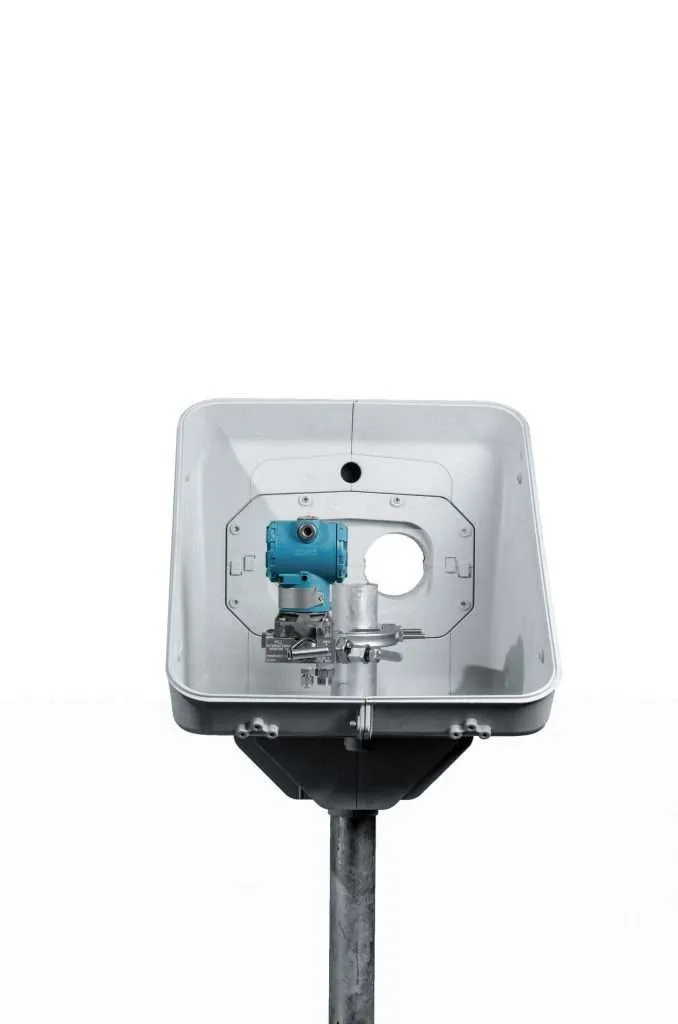

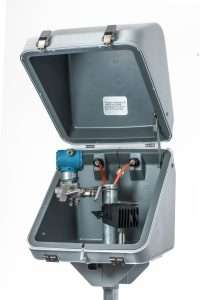

- Enclosure can be installed around the instrument allowing for greater access to the instrument & tubing.
- Optional, removable insulation in 1″(2.54cm) Urethane or 10 -20mm Pyrogel.
- The insulated box (with ThermaGuard Heated Liner) can maintain > 75°F/23.9°C in a -60°F/-51.1°C temperature environment

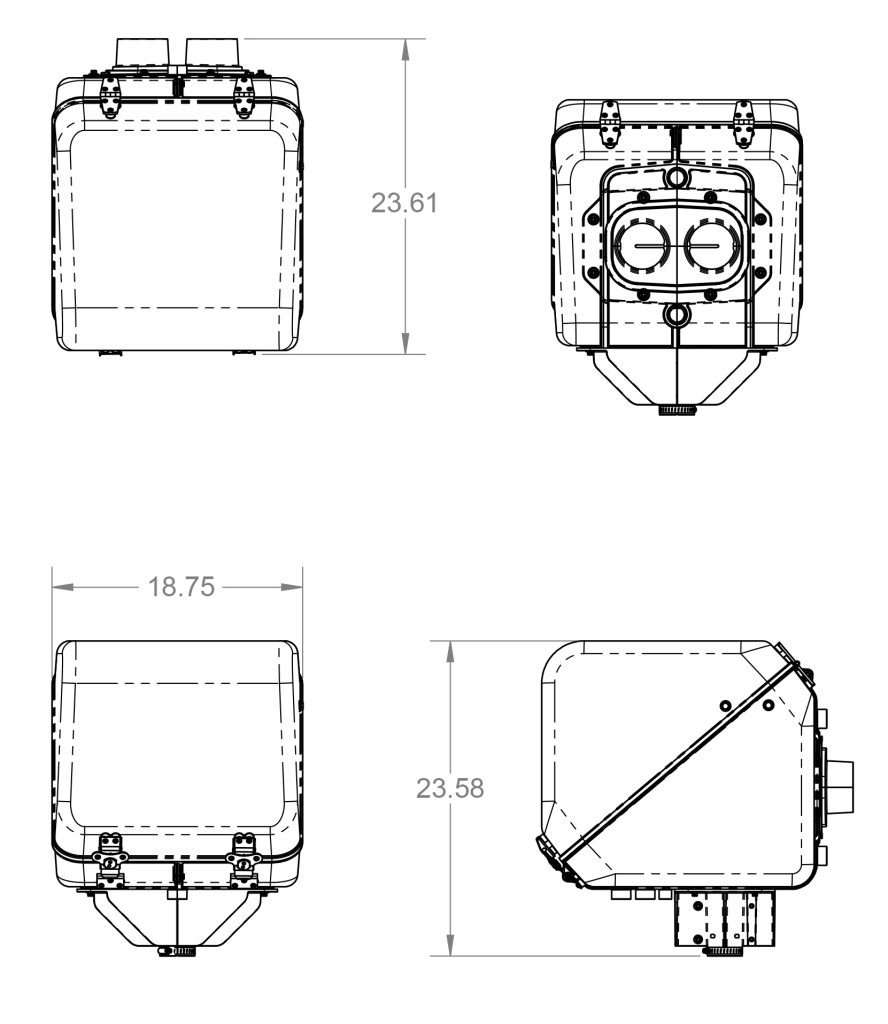

ThermaGuard Enclosure Specifications
| Outer Dimensions H x W x L | 23.58” x 18.75” x 23.61” 59.89cm x 47.62cm x 59.96cm |
| Inner Dimensions H x W x L | 21.95” x 17.92” x 23.08” 55.75cm x 45.51cm x 58.62cm |
| Material Thickness | Approx ¼” (0.635cm) |
| Material Type | ASA Plastic w/ glass reinforcement |
| Protection Standard | IP 66 |
| Temperature Rating | > 75°F/23.9°C in -60°F/-51.1°C environment (with ThermaGuard Heated Liner) |
| Gasket Material | EPDM gaskets |
| Color | Light grey |
| Approx. Weight | 19.4 lbs (8.8 Kg) |
| Pipe Stand Mount Size | sch 40 2” pipe dia (2.375”) sch 40 5.08cm pip dia (6.03cm) |
| Lip Support | (1) Stainless steel lid support |
| Hinges | (2) Stainless steel hinges |
| Latches | (2) Stainless steel latches |
| Hardware | All stainless steel hardware |
| Outer Dimensions H x W x L | 23.58” x 18.75” x 23.61” 59.89cm x 47.62cm x 59.96cm |
 |
| Inner Dimensions H x W x L | 21.95” x 17.92” x 23.08” 55.75cm x 45.51cm x 58.62cm |
|
| Material Thickness | Approx ¼” (0.635cm) | |
| Material Type | ASA Plastic w/ glass reinforcement | |
| Protection Standard | IP 66 | |
| Temperature Rating | > 75°F/23.9°C in -60°F/-51.1°C environment (with ThermaGuard Heated Liner) | |
| Gasket Material | Neoprene gaskets | |
| Color | Light grey | |
| Approx. Weight | 15.8 lbs (7.167 Kg) | |
| Pipe Stand Mount Size | sch 40 2” pipe dia (2.375”) sch 40 5.08cm pip dia (6.03cm) |
|
| Lip Support | (1) Stainless steel lid support | |
| Hinges | (2) Stainless steel hinges | |
| Latches | (2) Stainless steel latches | |
| Hardware | All stainless steel hardware |
Versatility & Standardized Assembly

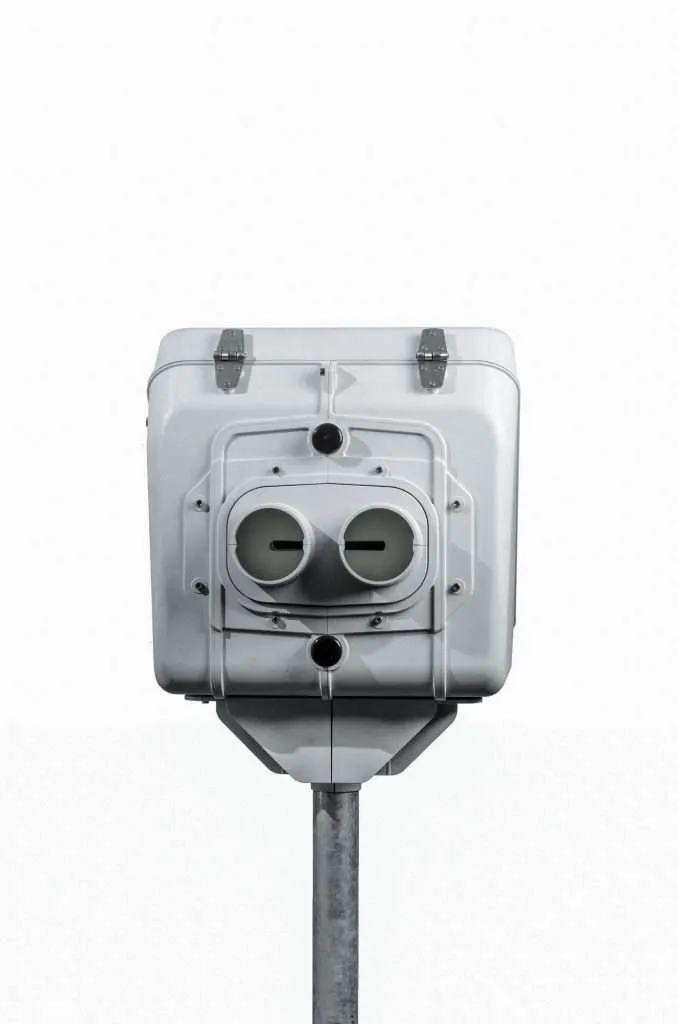

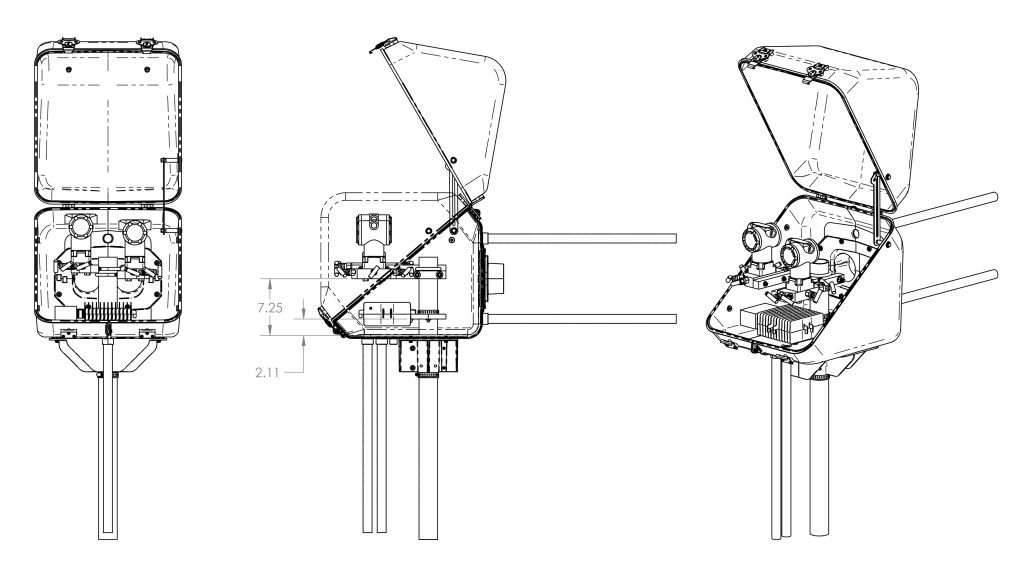

Once the ThermaGuard enclosure manifold is fitted to the pip stand it provides standardized ports for installation of conduit and tubing bundle. The ThermaGuard manifold is a quick connect design that aims to reduce the total install time and cost by 30%. Every ThermaGuard install has a consistent conduit and bundle alignment allowing for a standardized enclosure installation for all projects.
Accessories Available
- 1″(2.54cm) Polyisocyanurate or 10 -20mm Pyrogel Insulation
- 100W Heater with mounting bracket
- Thermostat with preset temperatures
- 2” (5.08cm) instrument stand that comes in single
- Pipe stands available in hot-dip galvanized, painted galvanized, or fiberglass

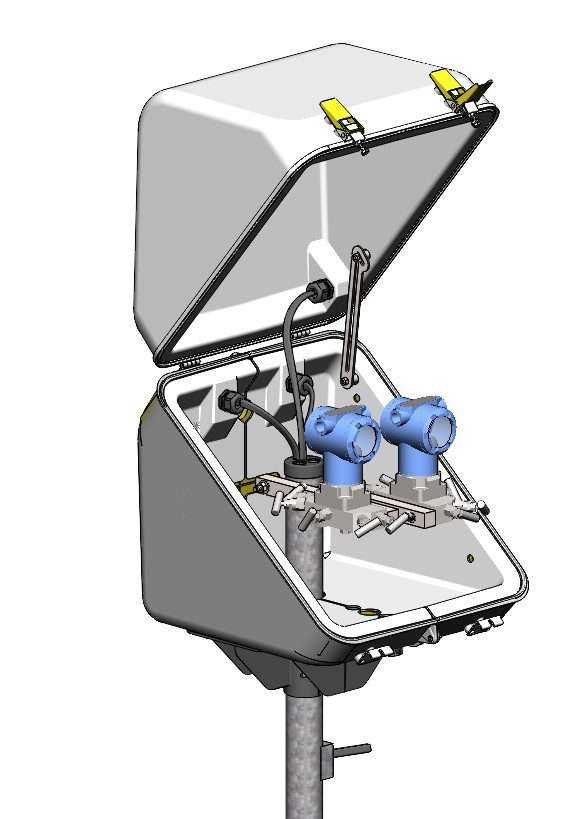

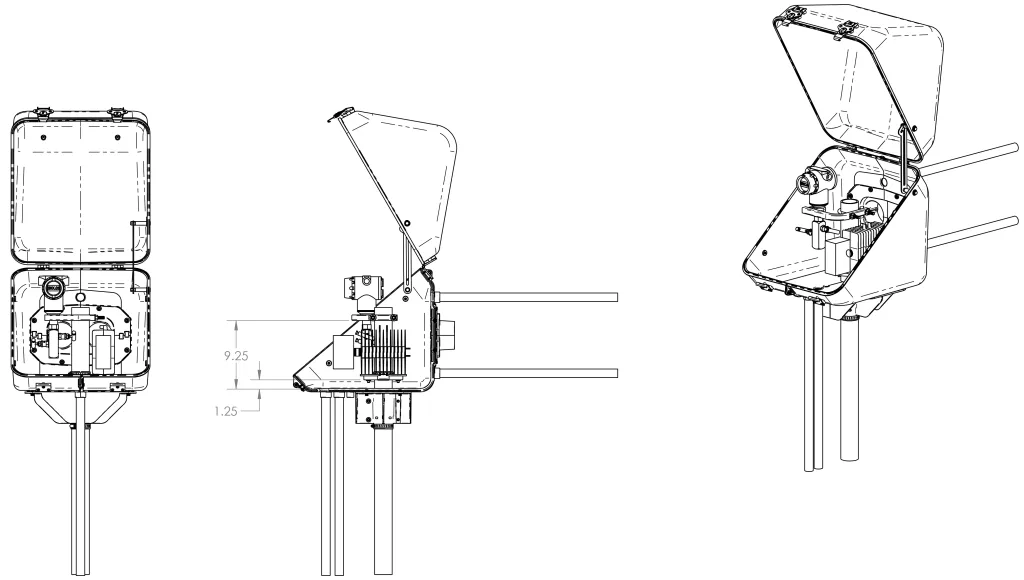

- Universal mounting bracket for single or dual instrument installations
Removable Insulation (Optional)
Therma Guard removable insulation includes a lined shell to provide extra protection and increased efficiency. It is made from a lightweight urethane foam to conserve heat loss. The 2-piece removable design allows insulation to be installed or replaced at any time. The insulation has a K Factor of .159 BTU (IT) inch/hour/foot²/Fahrenheit. With the arctic insulation and Terrapin heater, the ThermaGuard Enclosure can maintain 40°F(4.4°C) in -60°F(-51.1°C) temperatures.
   |
   |
   |
 |
 |
 |
 |
 |
 |
 |
 |
