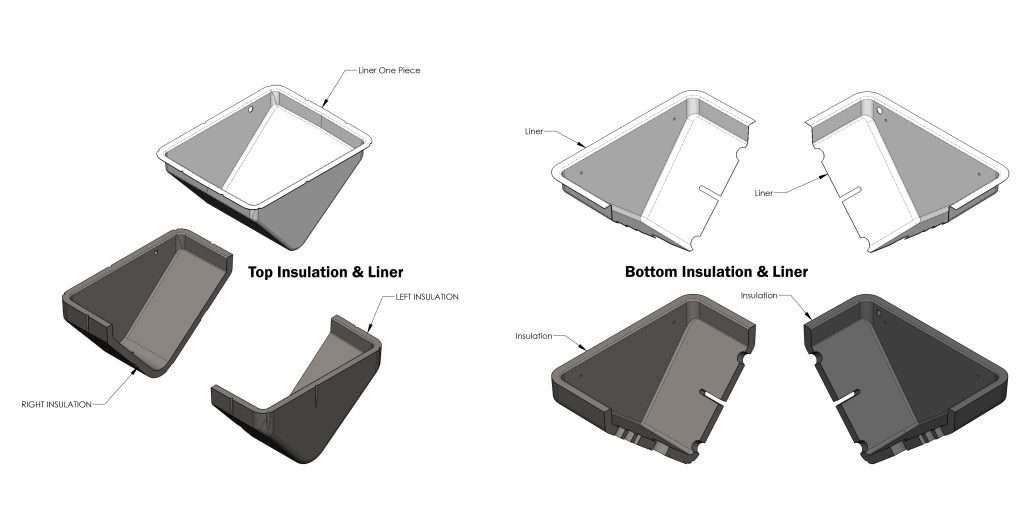

ThermaGuard Insulation


ThermaGuard Insulation can be easily replaced removed or installed at any time without removing the enclosure or the process instrument. This light-weight insulation is highly efficient with a K-Factor of .159 BTU (IT) inch/hour/foot²/Fahrenheit. Insulation is available in 1″(2.54cm) Polyisocyanurate or 10 -20mm Pyrogel and an optional liner for a smooth protective finish.

ThermaGuard Insulation Specifications

Outer Dimensions H x W x L:21.95” x 17.92” x 23.08”
55.75cm x 45.52cm x 58.62cm
Material/Thickness Options:1” (2.54cm ) Polyisocyanurate
10mm or 20mm Pyrogel
K-Factor:.159 BTU (IT) inch/hour/foot²/Fahrenheit
Short term exposure temp resistance320°F (160°C)
Long term exposure temp resistance212°F (100°C)
Color:Grey
Optional Liner Material:PET
Optional Liner Color:Grey
Optional Liner Thickness:2mm
Outer Dimensions H x W x L:21.95” x 17.92” x 23.08”
55.75cm x 45.52cm x 58.62cm
Material/Thickness Options:1” (2.54cm ) Polyisocyanurate
10mm or 20mm Pyrogel
K-Factor:.159 BTU (IT) inch/hour/foot²/Fahrenheit
Short term exposure temp resistance320°F (160°C)
Long term exposure  temp resistance212°F (100°C)
Color:Grey
Optional Liner Material:PET
Optional Liner Color:Grey
Optional Liner Thickness:2mm

Download Insulation Spec Sheet
