ThermaGuard 100W Finned Heater


ThermaGuard Enclosure finned heaters feature a compact and efficient design.  The easy install mounting bracket allows for 360° heater mounting for maximum flexibly during installation. Our patented mounting clip allows for both vertical and horizontal heater orientations.



  • Maintains 40°F(4.4°C) in -60°F(-51.1°C)
  • 60% faster heater installation in under 2 minutes

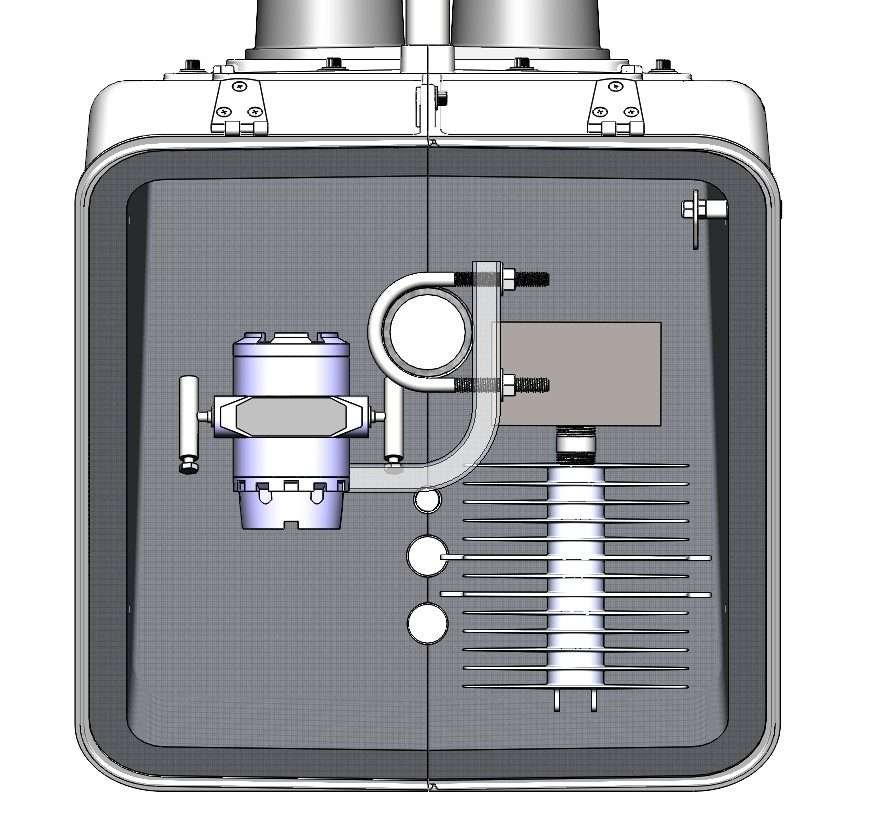

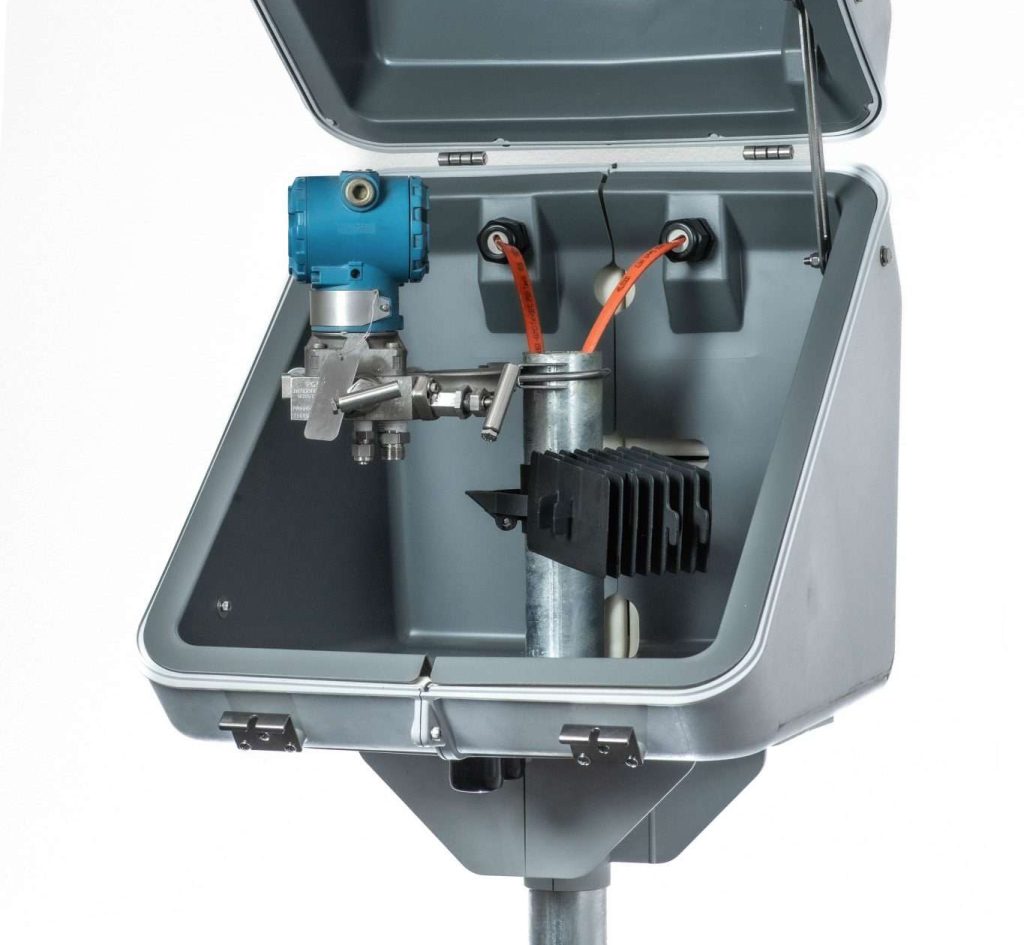

  • 360° universal mounting bracket for single or dual instrument installations
  • Heater can be mounted or removed at any time
  • Compact and efficient design for easier installation and instrument access
  • Patented mounting clip allows for heater to be mounting in vertical or horizontal orientations

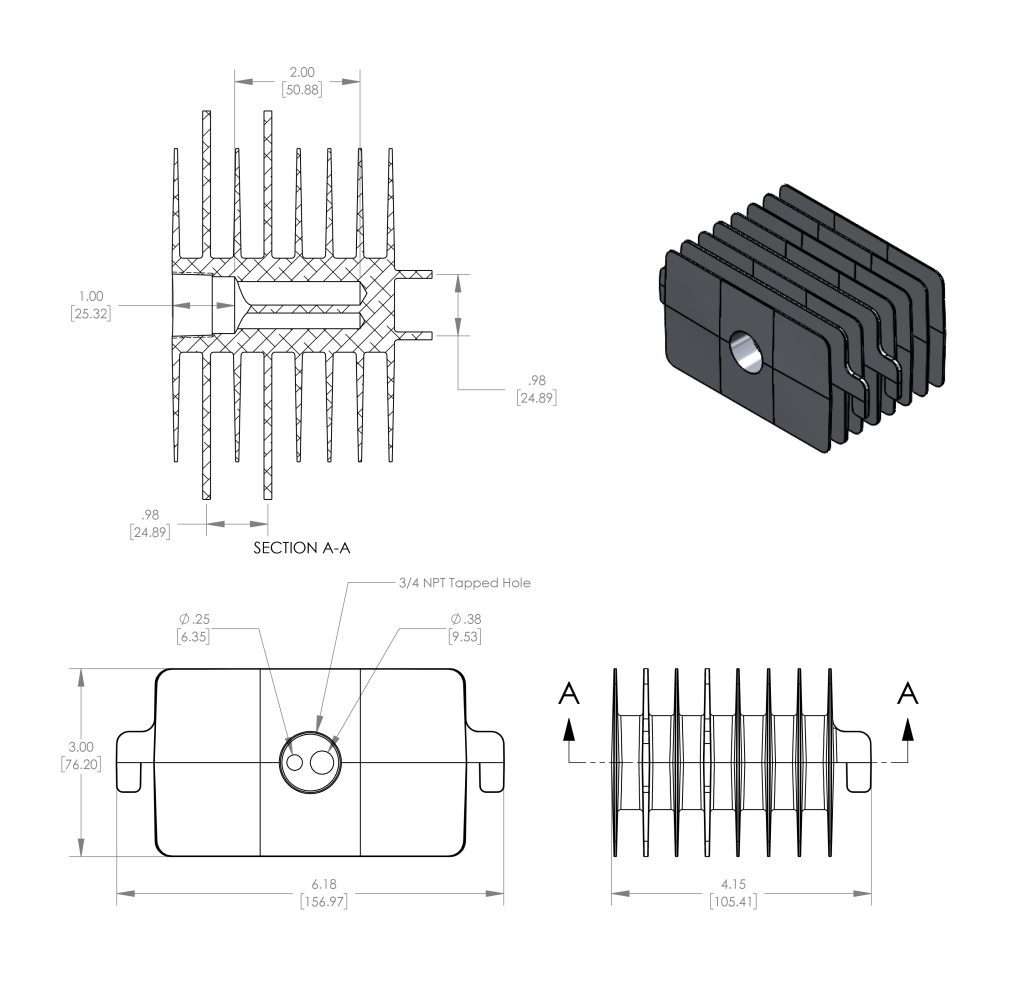

100W Heater Specifications

Dimensions H x W x L:3” x 6.18” x 4.13”
7.62cm x 15.69cm x 10.49cm
Voltage:120V, 208V-277V
Amps:0.83A
Material Type:Marine Grade Aluminum
Finish:Black Anodized
Temp Rating (with insulation)40°F/4.4°C  in -60°F/-51.1°C environment



Dimensions H x W x L:3” x 6.18” x 4.13”
7.62cm x 15.69cm x 10.49cm
Voltage:120V, 208V-277V
Amps:0.83A
Material Type:Marine Grade Aluminum
Finish:AnodizedBlack Anodized
Temp Rating (with insulation)40°F/4.4°C  in -60°F/-51.1°C environment

Download Heater Spec Sheet

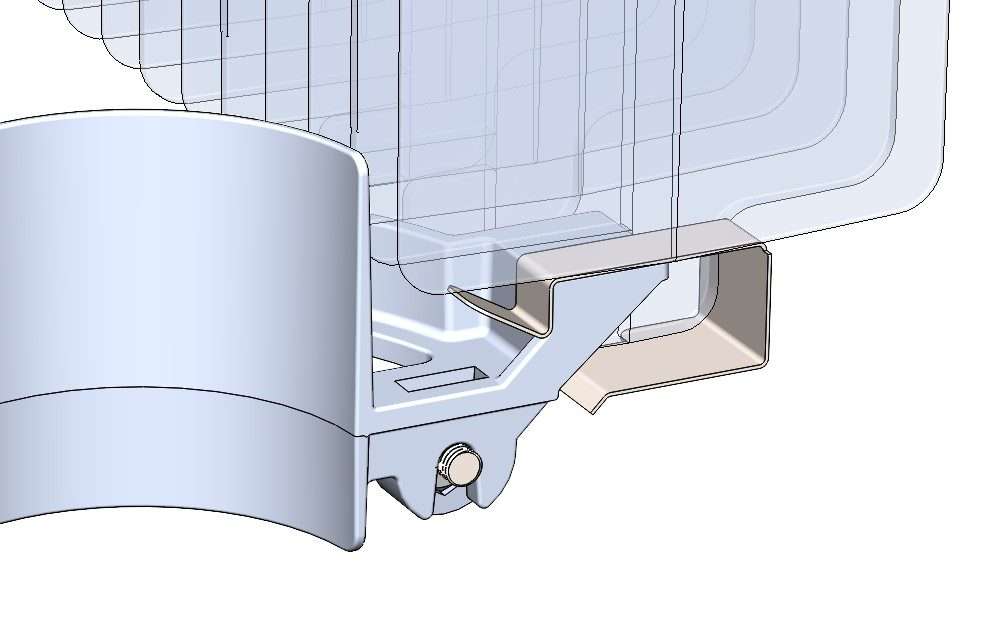

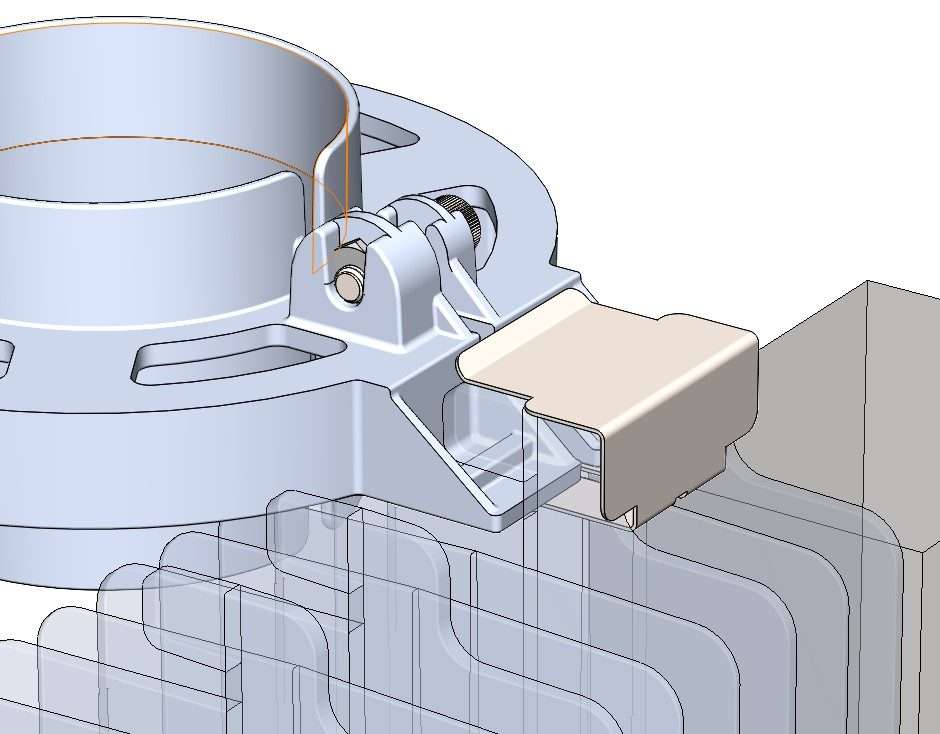

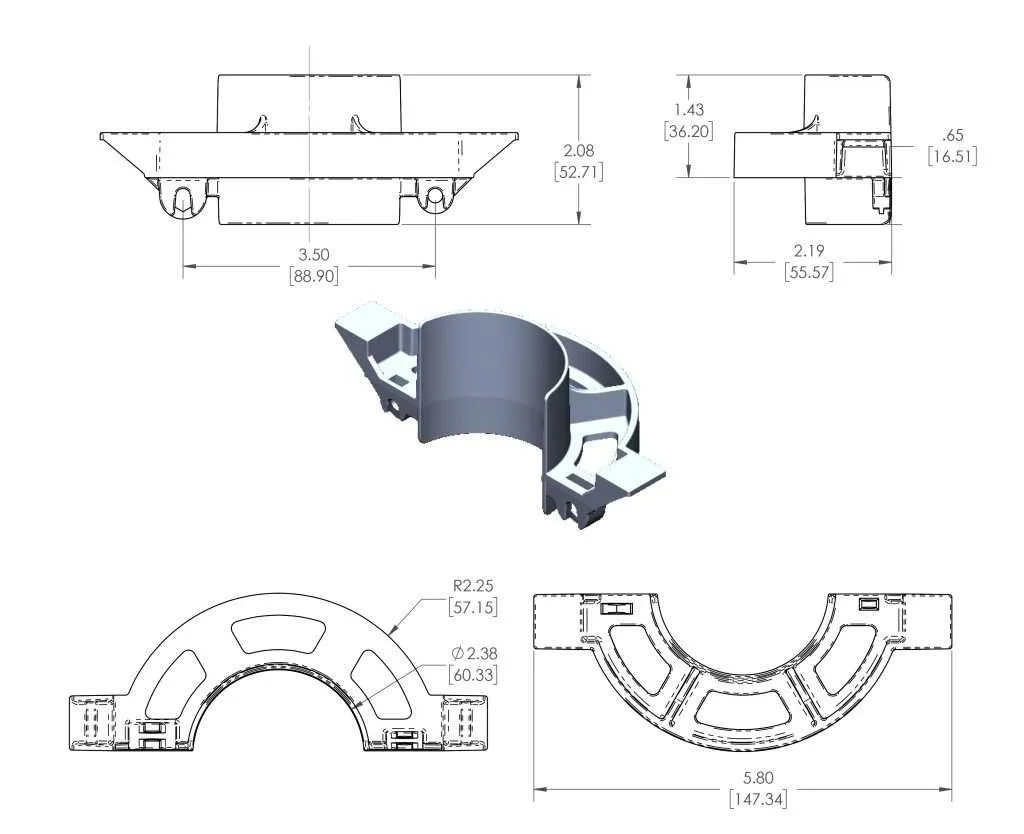

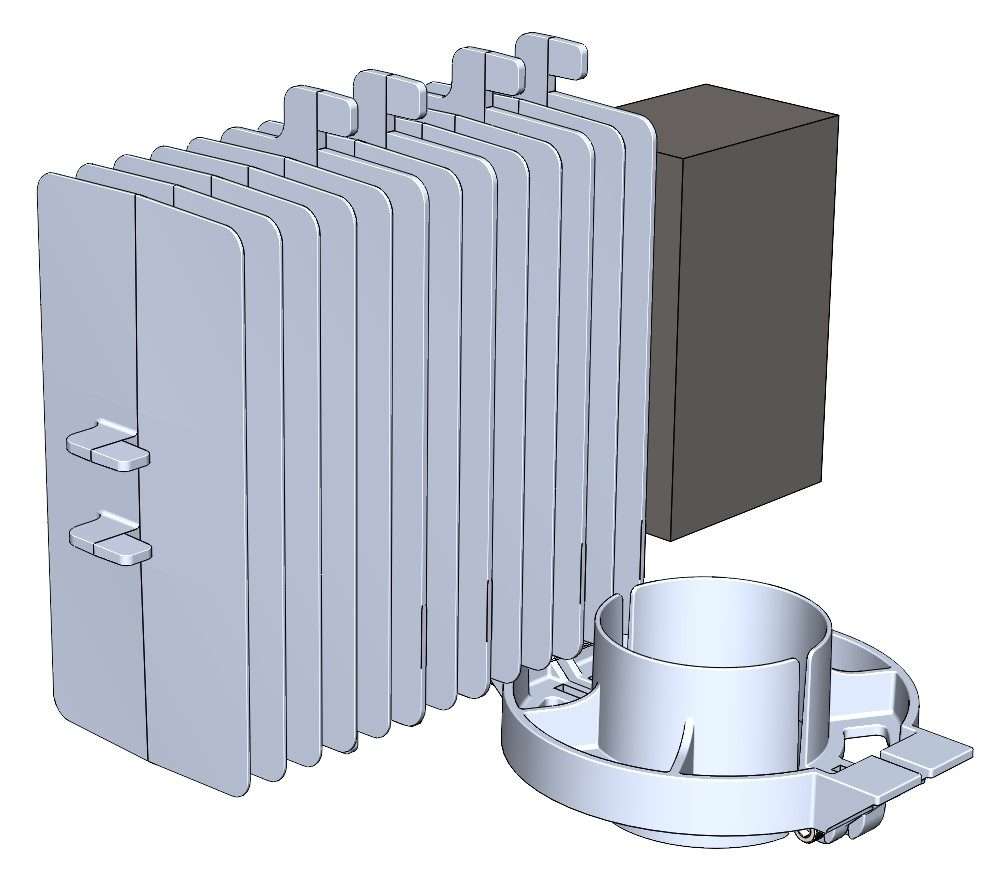

Patented Heater Mounting Bracket



Dimensions H x W x L:2.08” x 4.38” x 5.80”
5.28cm x 11.12cm x 14.73cm
Material Type:Marine Grade Aluminum
Finish:Black Anodized
Dimensions H x W x L:2.08” x 4.38” x 5.80”
5.28cm x 11.12cm x 14.73cm
Material Type:Marine Grade Aluminum
Finish:Black Anodized
